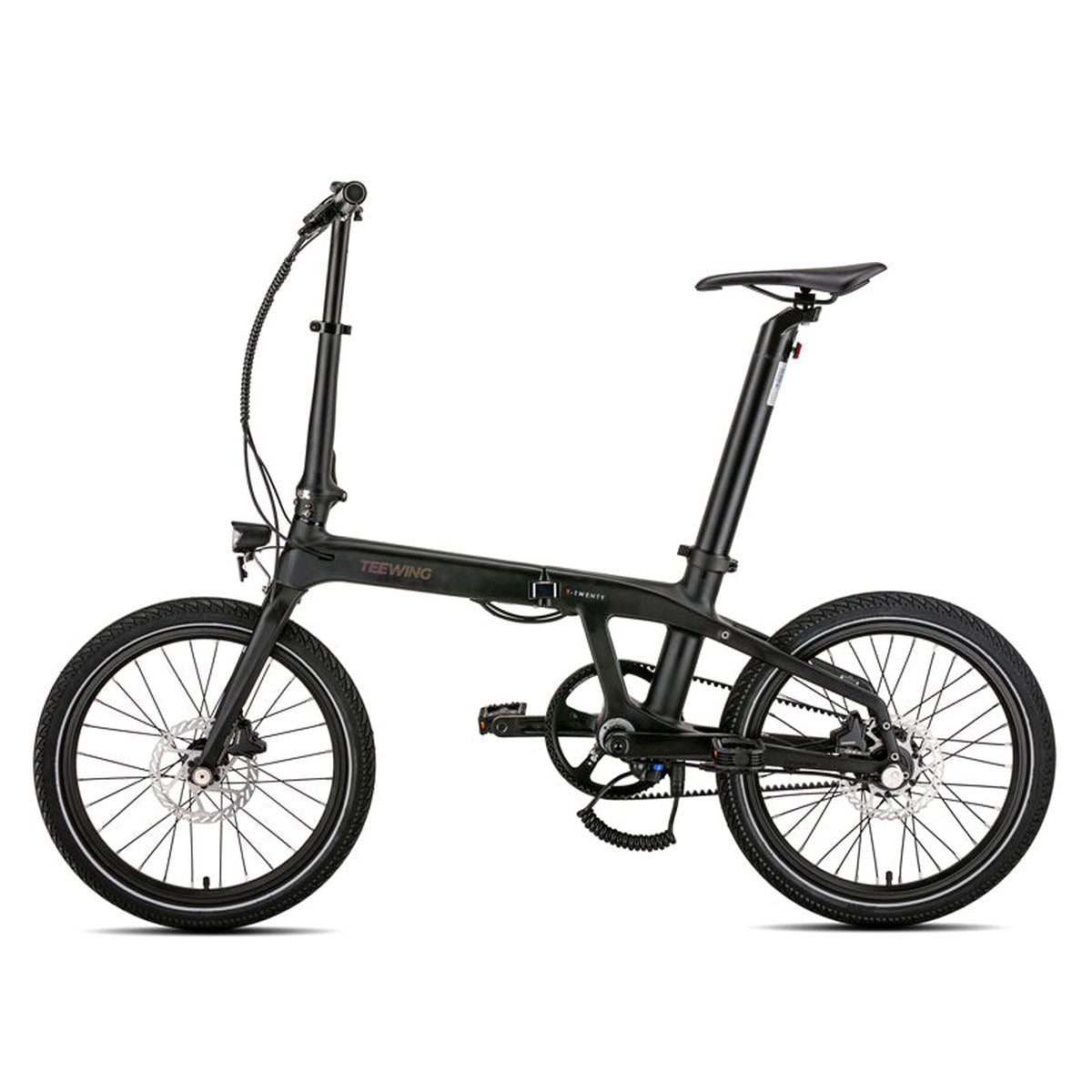

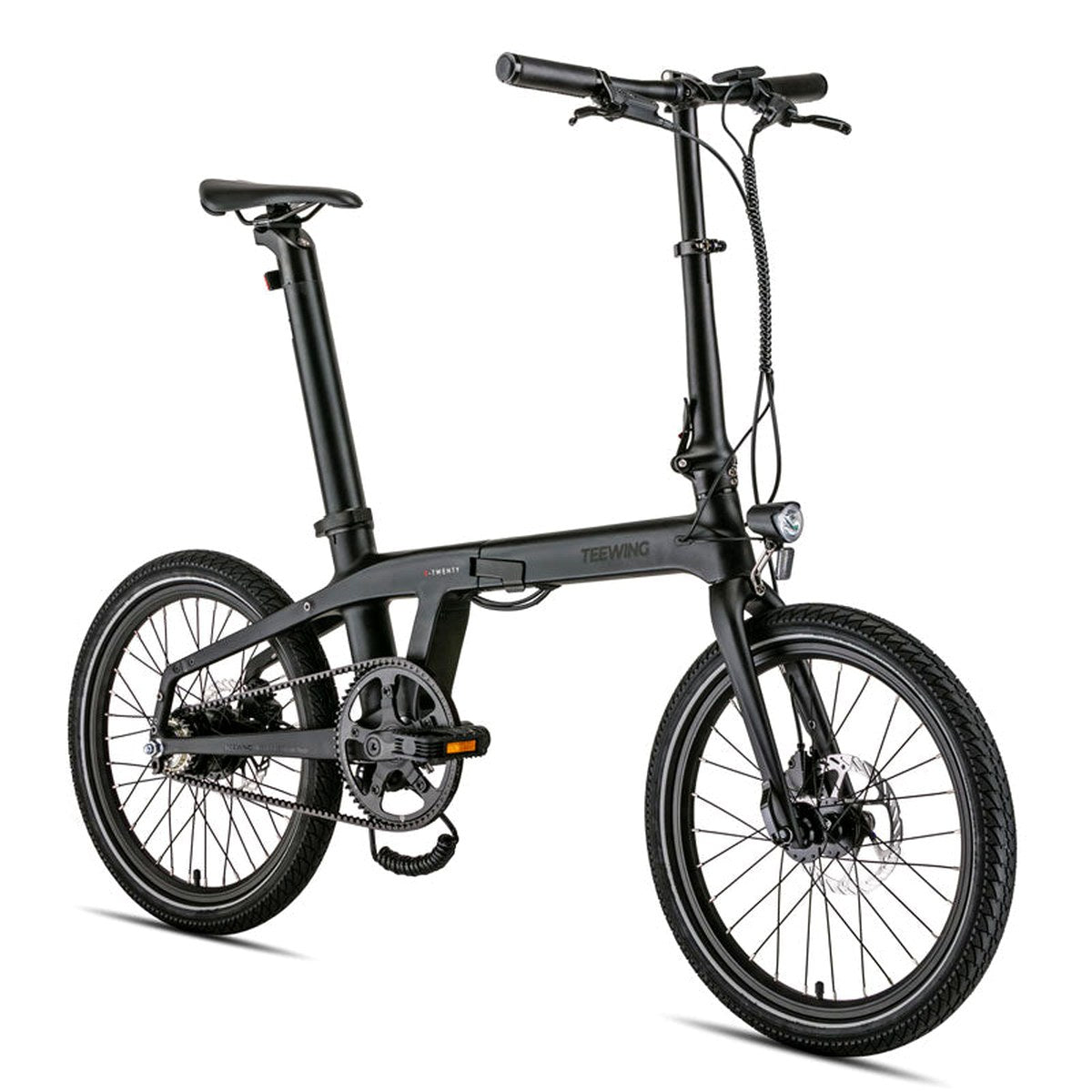

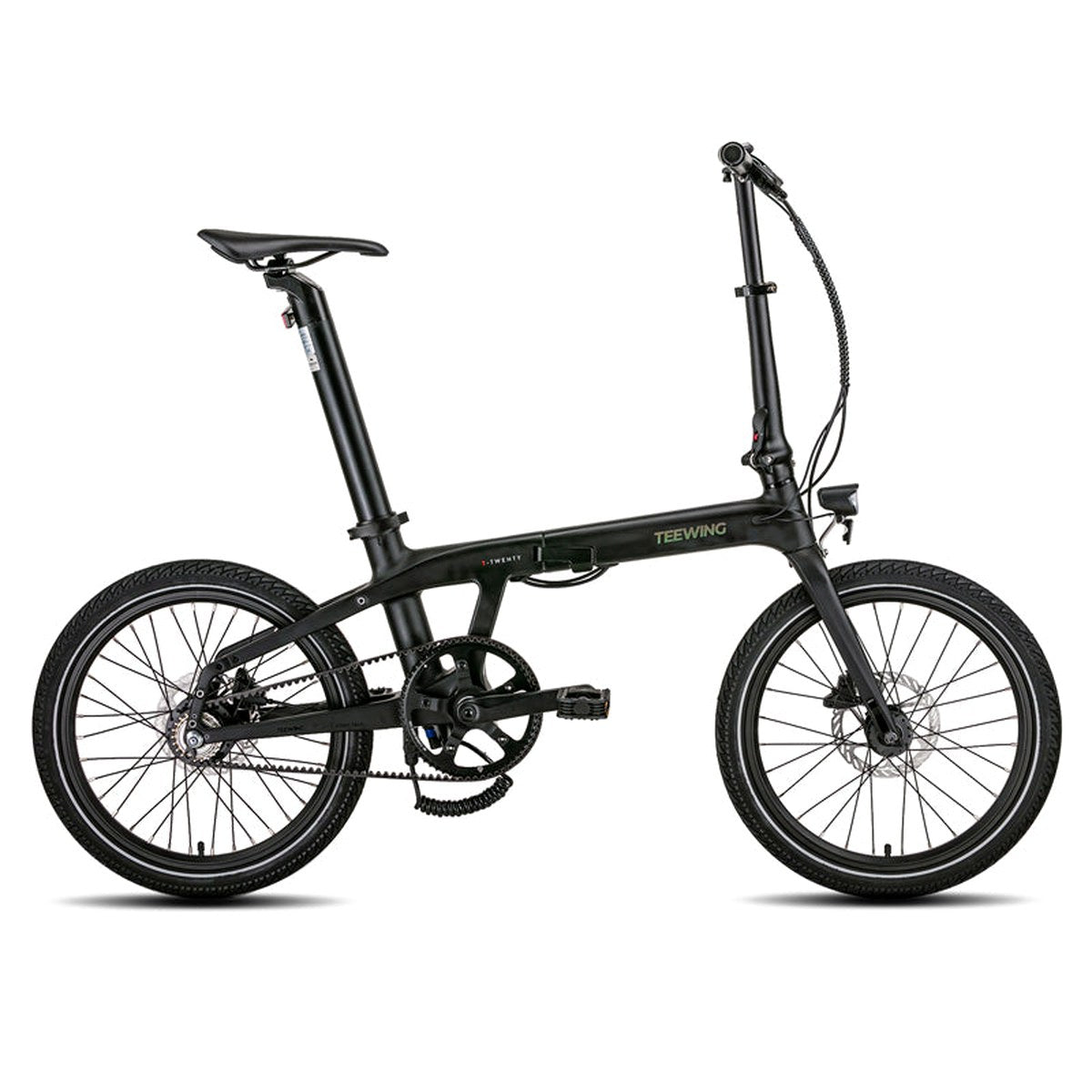

T20 Electric Bike
Carbon Fiber Frame & Fork, Torque Sensor System, Carbon Transmission Belt
Lightweight Carbon Tech
The frame and front fork of Teewing T20 E-bike are made of high-strength lightweight carbon fiber material, which greatly reduces the weight of the entire vehicle while ensuring the strength of the frame. The frame has a streamlined design that is simple and beautiful, and all electrical components and wires are ingeniously hidden inside the frame.

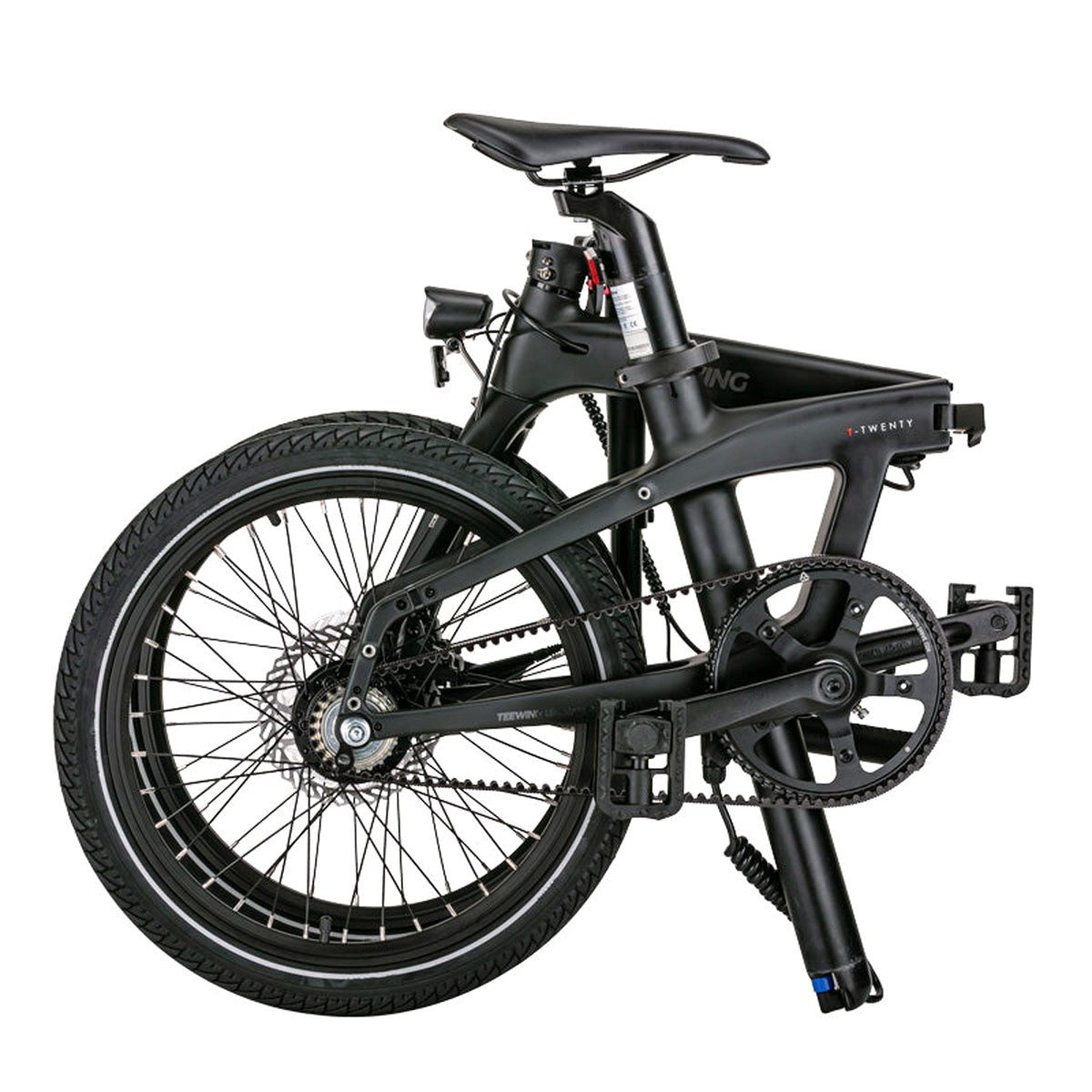

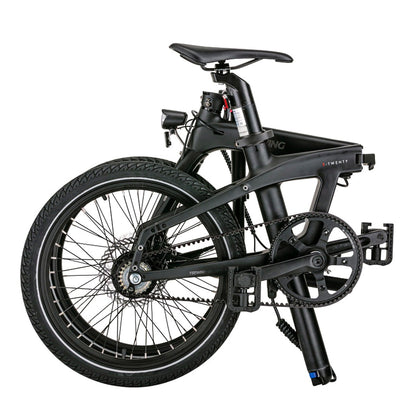

Folding & Portable Design
The Teewing T20 Full Carbon Electric Folding Bike boasts a folding and portable design, making it an ideal option for commuting and travel. With its compact size, the bike can easily be stored in small spaces, such as car trunks or under desks. Weighing under 14kgs, the bike can also be carried easily when folded.

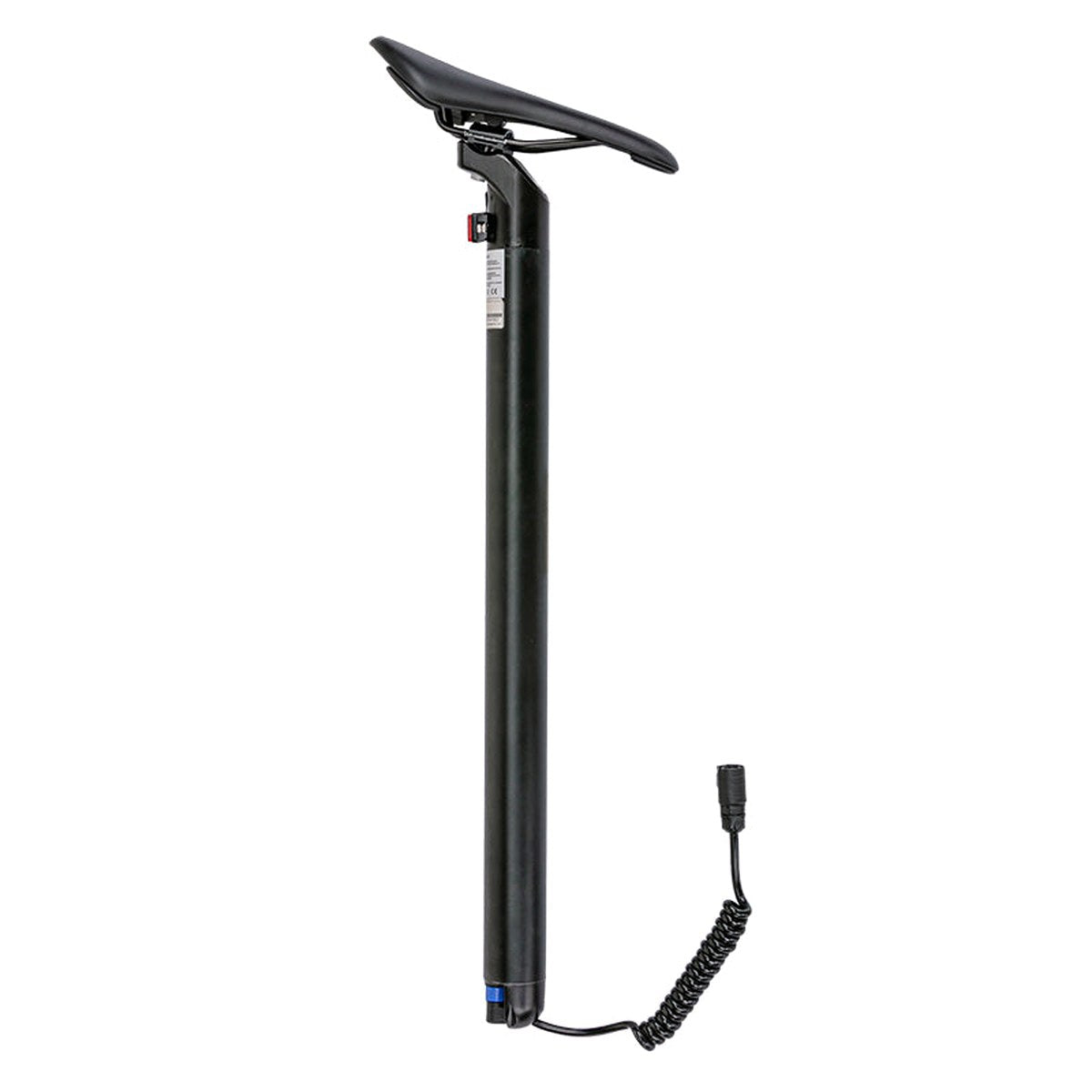

Portable Seattube Battery
This seattube battery is not only lightweight and easy to transport, but it is also easily removable. This means that you can take the battery out of the bike and charge it separately, either on or off the bike. The convenience of being able to charge the battery off the bike means that you can take it with you and charge it at your convenience, rather than having to find an outlet near the bike. With its versatile and user-friendly design, the Teewing T20 makes it easy to keep the battery charged and ready for your next ride.
-

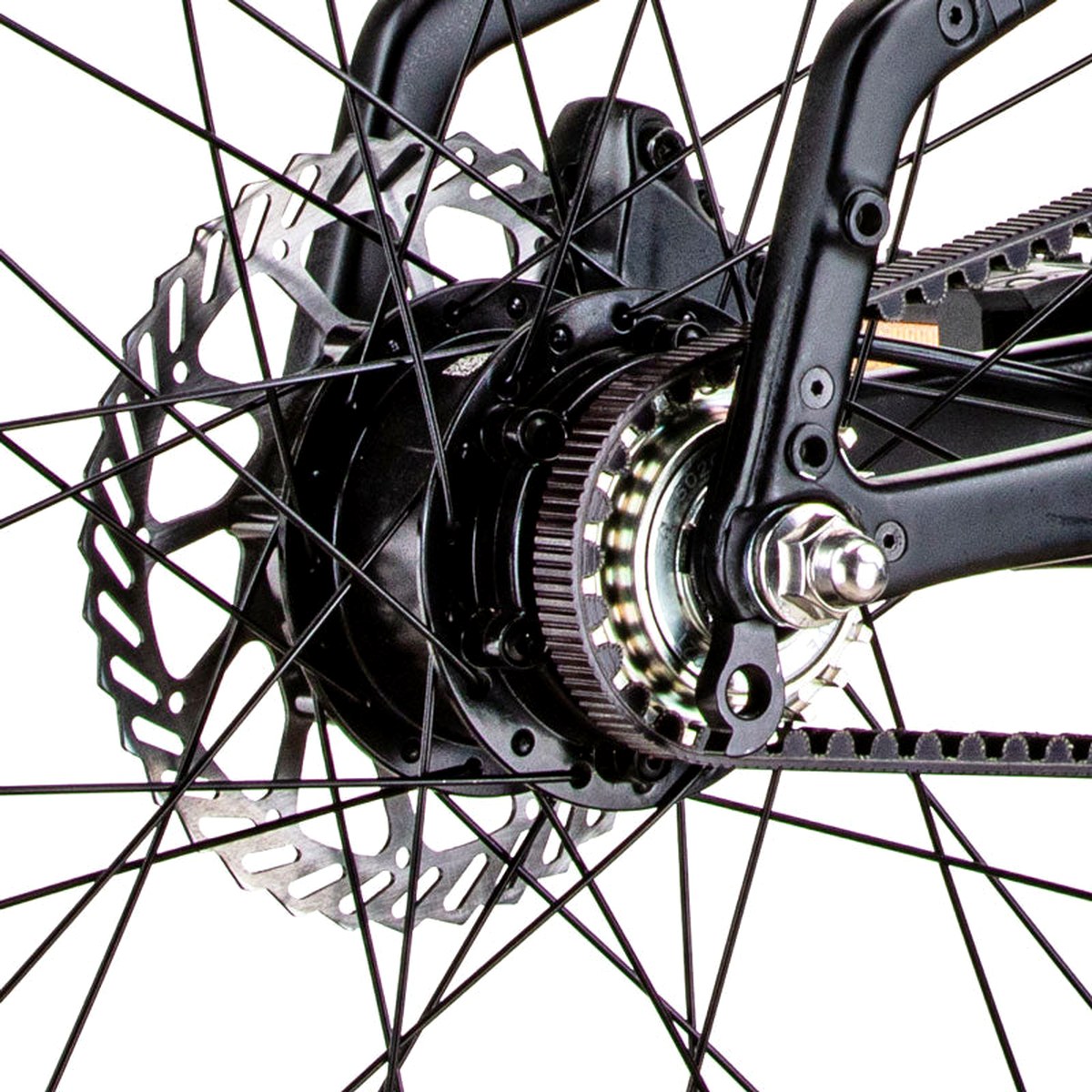

Mivice 250W Motor
The Mivice 250W Rear hub motor and torque sensor
provide efficient and responsive assistance for your ride -

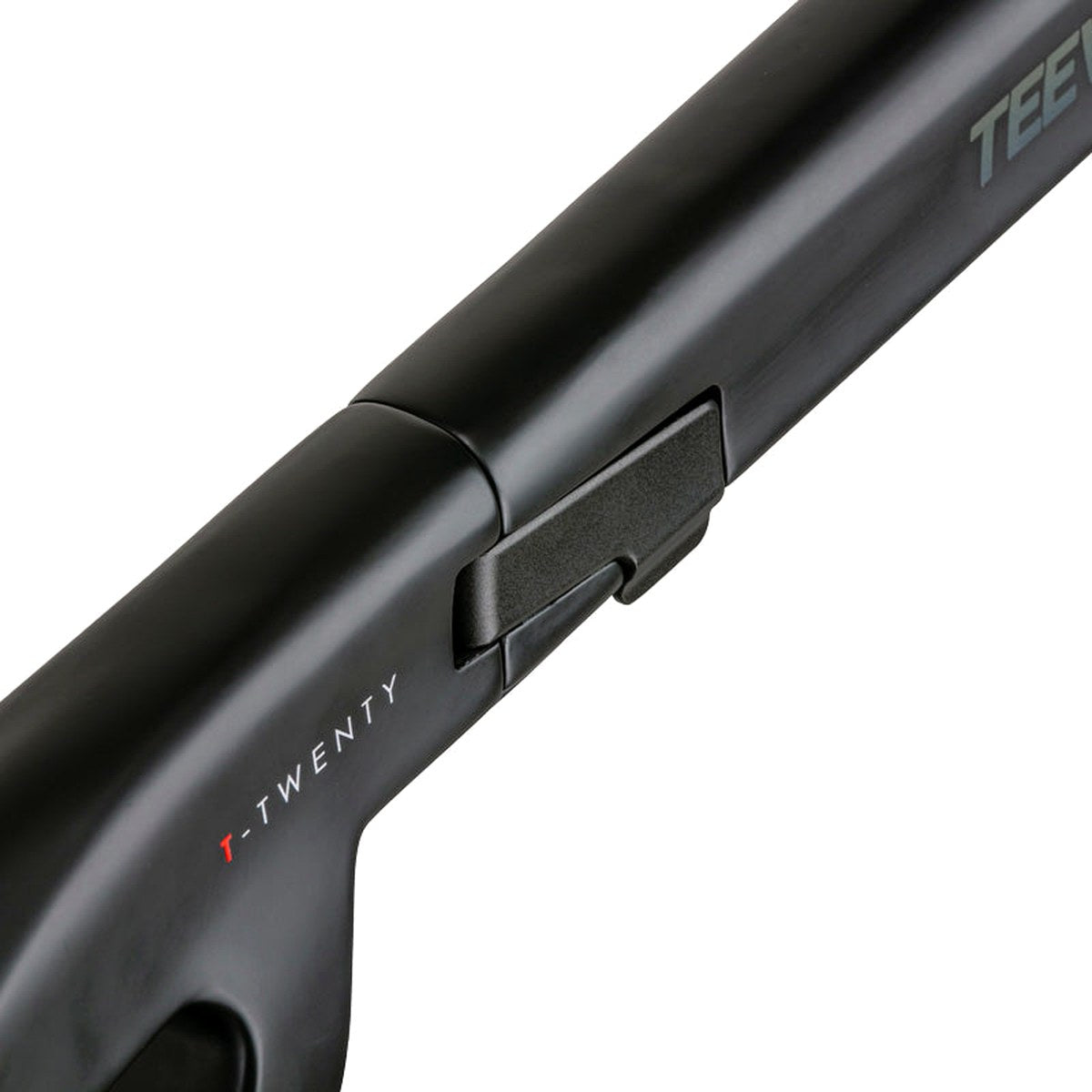

Concealed Folding Joint
The folding joint is integrated into the bike's frame, which means that it doesn't affect the bike's overall aesthetic or performance.
-

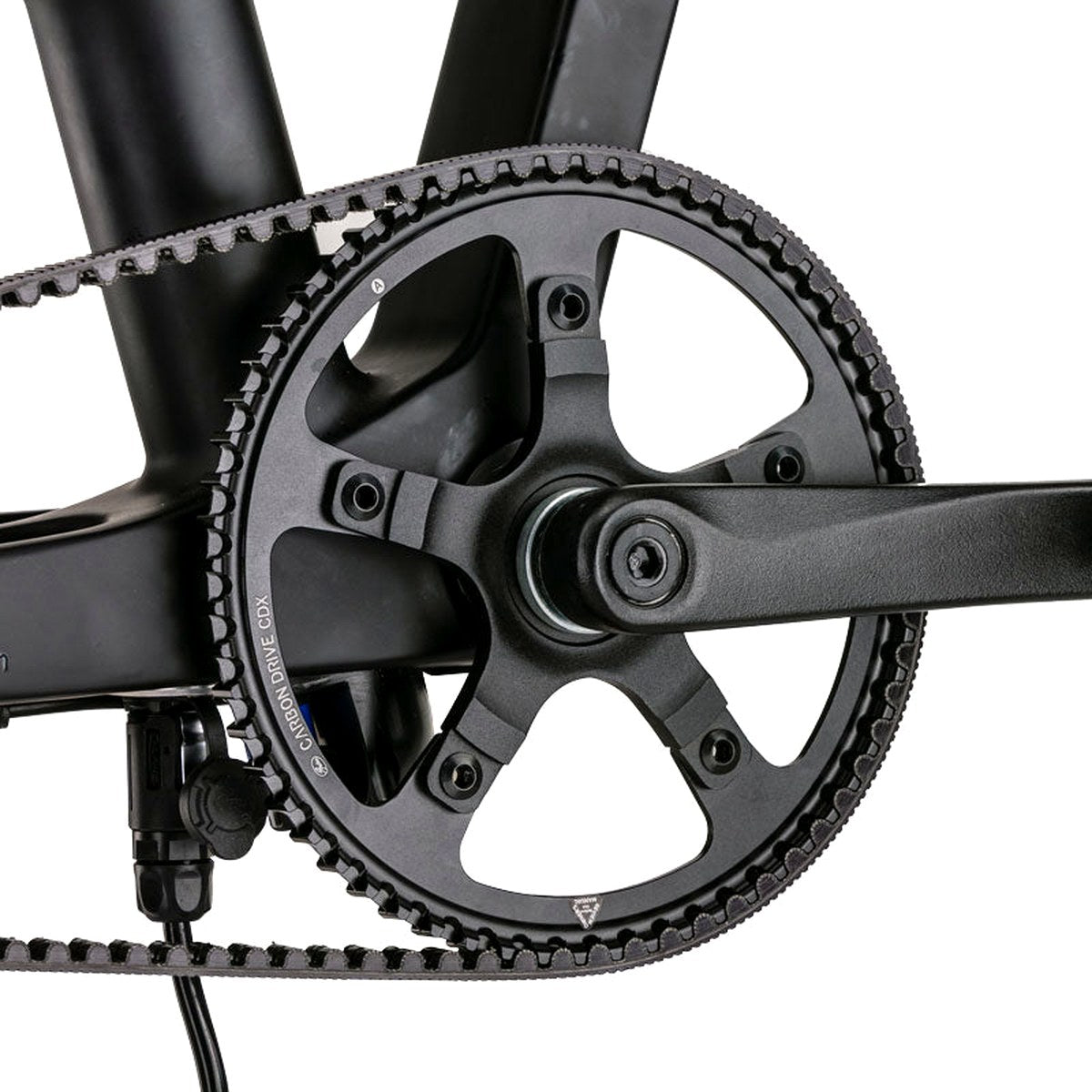

Gates Carbon Belt
The bike's transmission is the innovative Gates Carbon Belt system, which is cleaner, quieter, and requires less maintenance compared to traditional chain-driven systems.
-

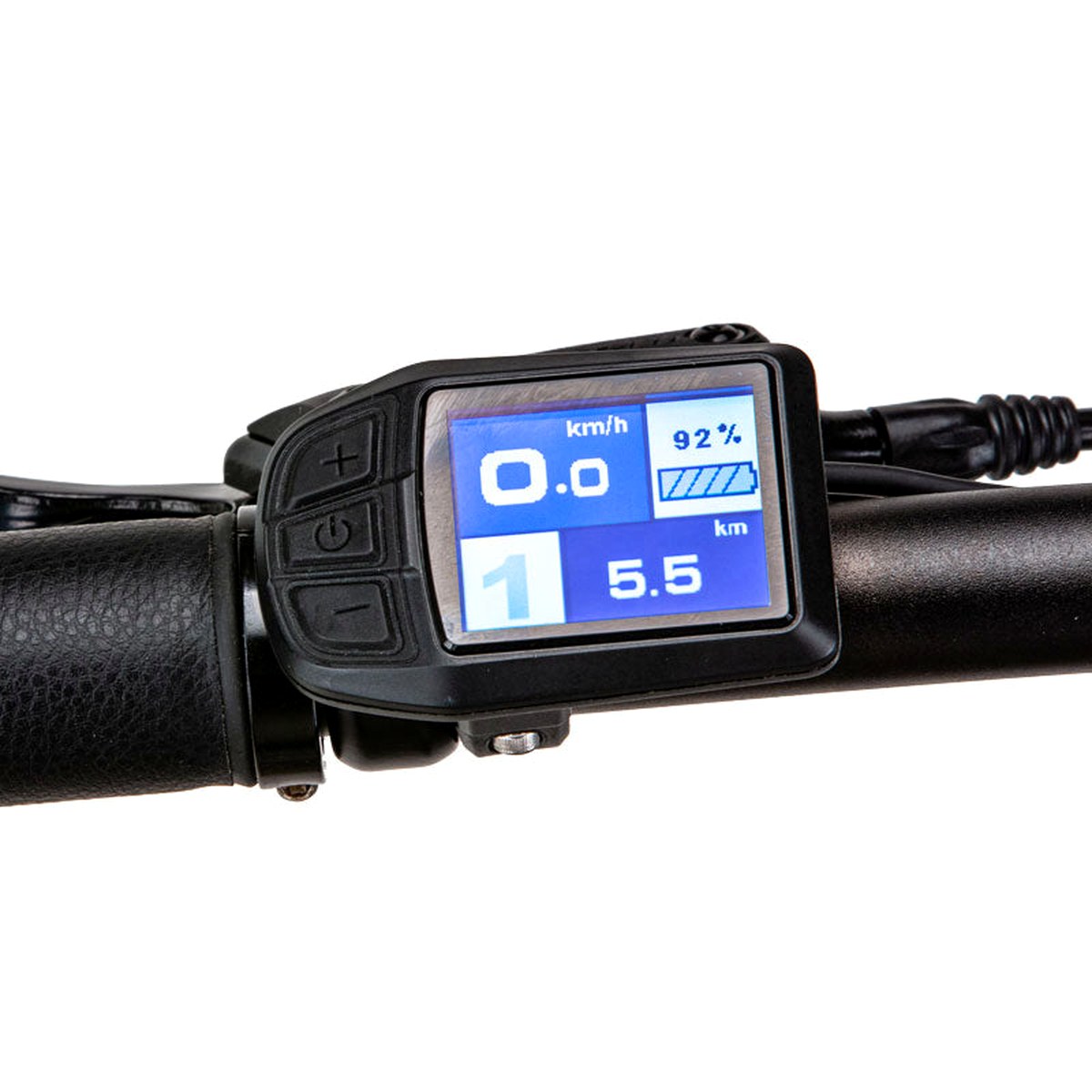

Smart LCD Display
The LCD display provides real-time information about the bike's speed, distance traveled, and remaining battery life. This allows riders to keep track of their progress and plan their rides accordingly.
-
Tektro Hydraulic Disc Brake
The Tektro hydraulic disc brakes provide reliable stopping power even in wet or challenging conditions.
-
E-bike Puncture-proof Tires
The CST 20"x1.95" E-bike puncture-proof tires help to ensure a smooth and comfortable ride while minimizing the risk of flats or other punctures
Video of T20 Electric Bike
Specification
T20 Electric Bike
Frame: Carbon Fiber frame with Concealed Folding Joint
Front Fork: Carbon Fiber Fork
Stem: Aluminum Alloy Foldable Stem, with Quick Release
Handlebar: Aluminum Alloy
Crankset: Gates Crankset
Drivetrain: Gates Carbon Belt
Tires: CST 20"*1.95" C-3007 Ebike Tires, with Reflective Stripe
Bottom Bracket: Fully-Concealed Bottom Bracket
Rims: Aluminum Alloy Double Walls
Brake: Tektro HD-R280 Hydraulic Disc Brakes

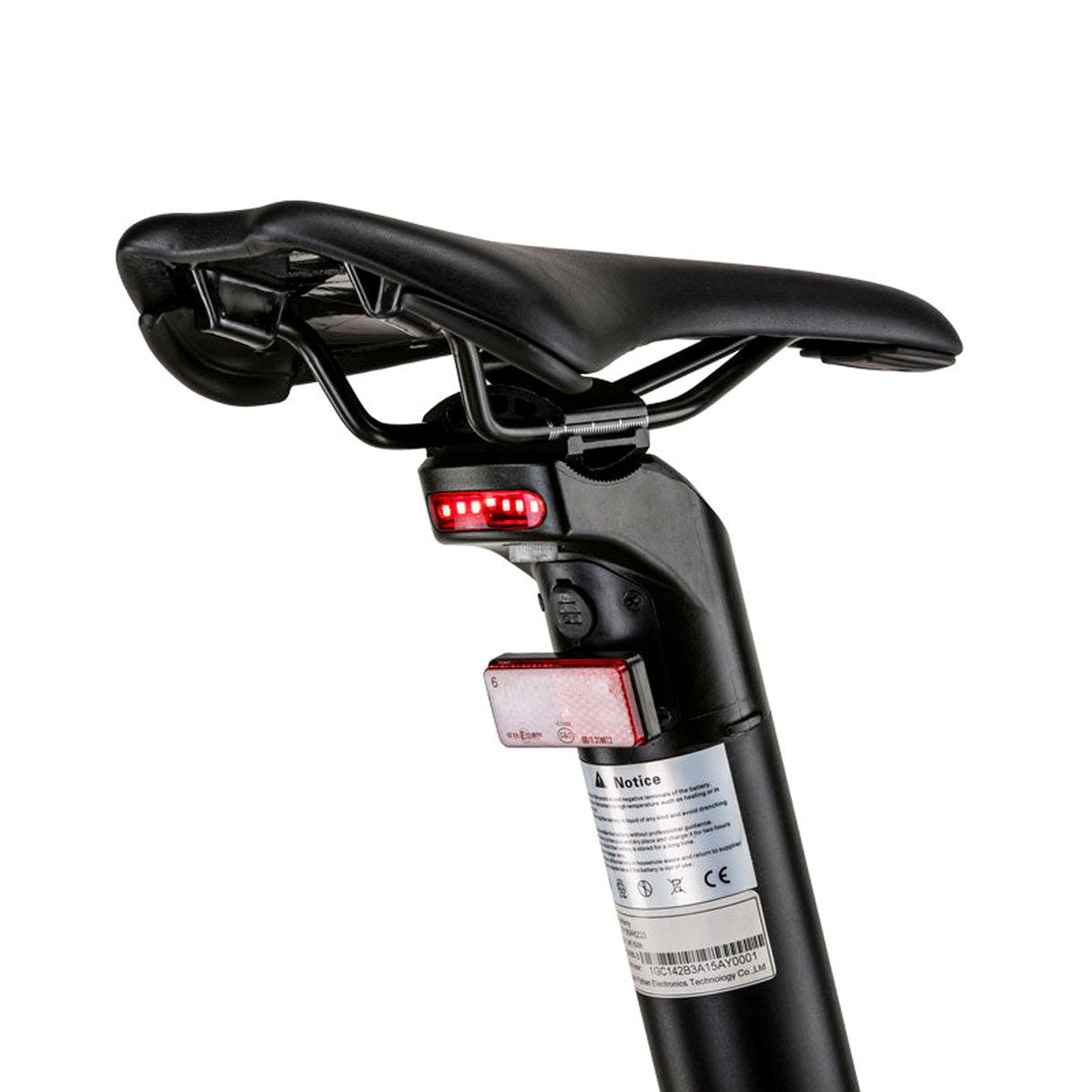

Saddle: Selle Royal 2060HRN
Pedal: Foldable Pedal with Reflective Plate
Motor: Mivice M070 250W Rear Hub Motor
Sensor: Mivice S200 Torque Sensor
Display: LCD Display, 5-Speed
Battery: 36V, 7Ah / 9.6AH Lithium-ion battery with Samsung cells
Controller: Mivice C201 Controller
Front Light: LED Light
Rear Light: LED Light
Top Speed: 25km/h (15mph)
Climbing Ability: Up to 10°
Range: Up to 70 kms (36V 7Ah Version); Up to 100 kms (36V 9.6Ah Version)
Weight: 12.5kgs (36V 7Ah Version); 13.5kgs (36V 9.6Ah Version)
Geometry
A(Total Length): 1510mm
B(Wheelbase): 1002mm
C(Total Height): 1005-1105mm
D(Seat Height): 900-1080mm(36V9.6Ah); 730-950mm(36V7Ah)
E(Handlebar Width): 565mm
F(Folded Length): 760mm
G(Folded Height): 810mm
H(Folded Width): 450mm
Packing List
1 T20 Electric Bike
1 Charger
1 Rear Carrier
1 Pair of Mudguards
1 Pair of Pedals
1 Side Stand
1 Bell
3 Tools
1 User Manual
*All the above accessories have been assembled onto the e-bike.
